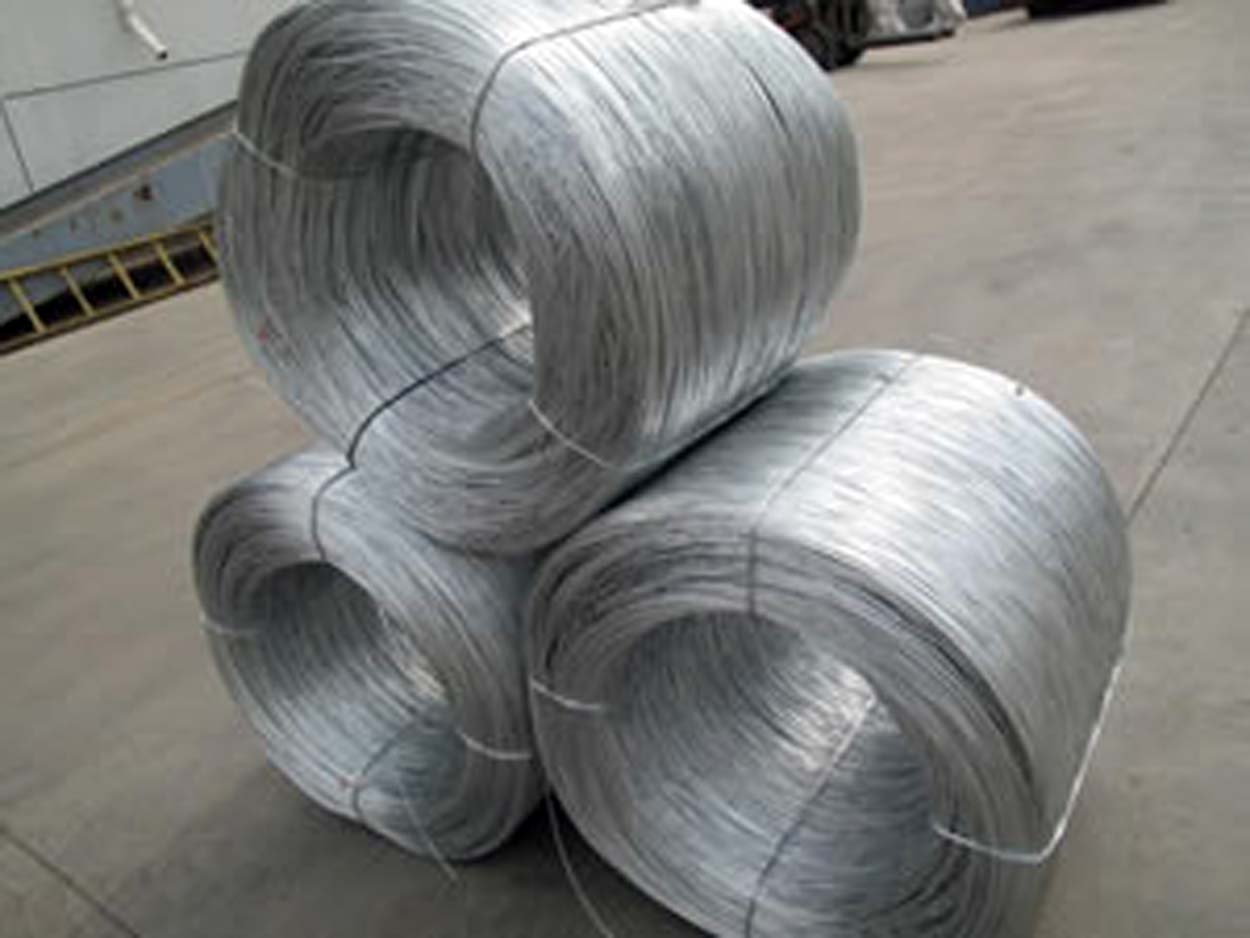

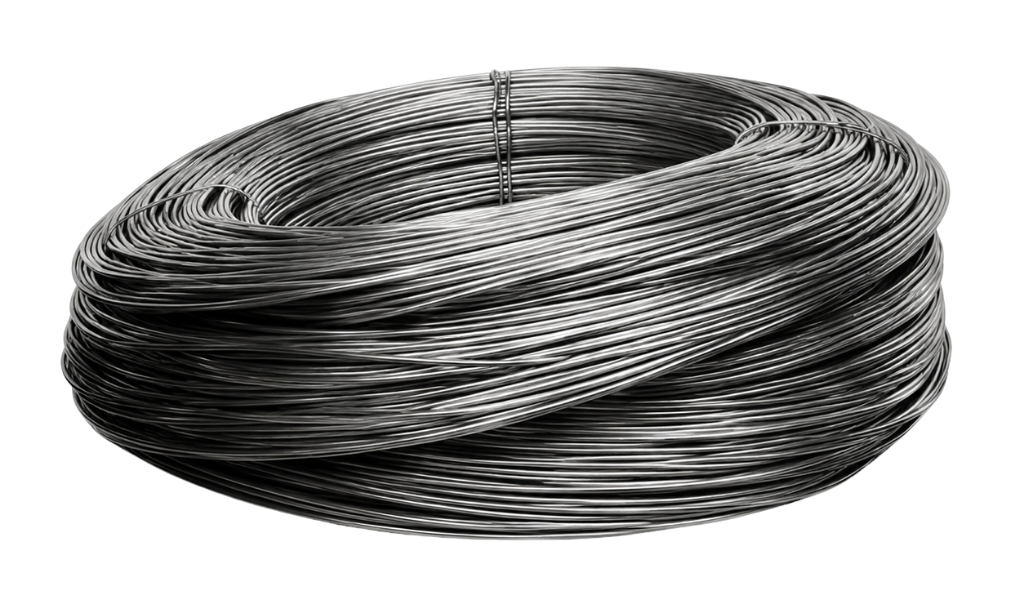

GALVANIZED STEEL WIRE
High quality zinc coated steel wire for superior corrosion resistance and long life.

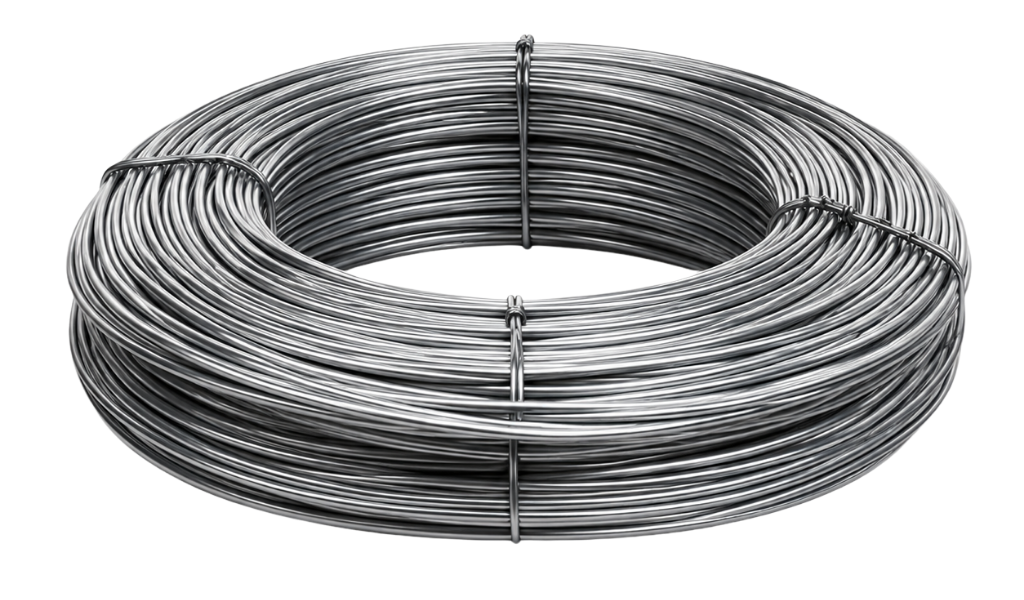

HIGH CARBON STEEL WIRE
High tensile strength steel wire for industrial and engineering applications.

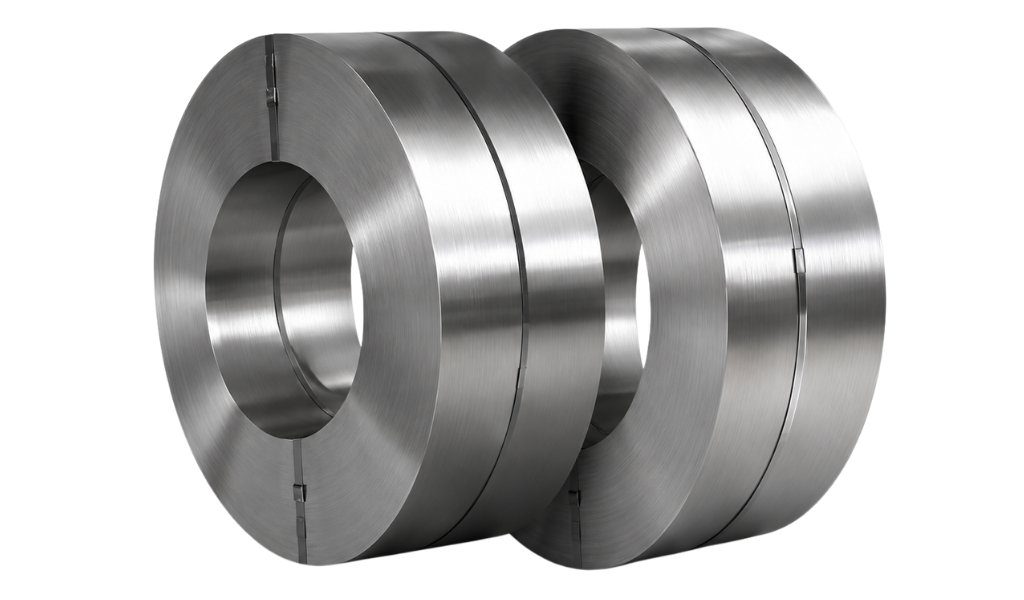

GALANIZED STEEL STRIP
Premium quality galvanized steel strip with uniform coating and high strength.

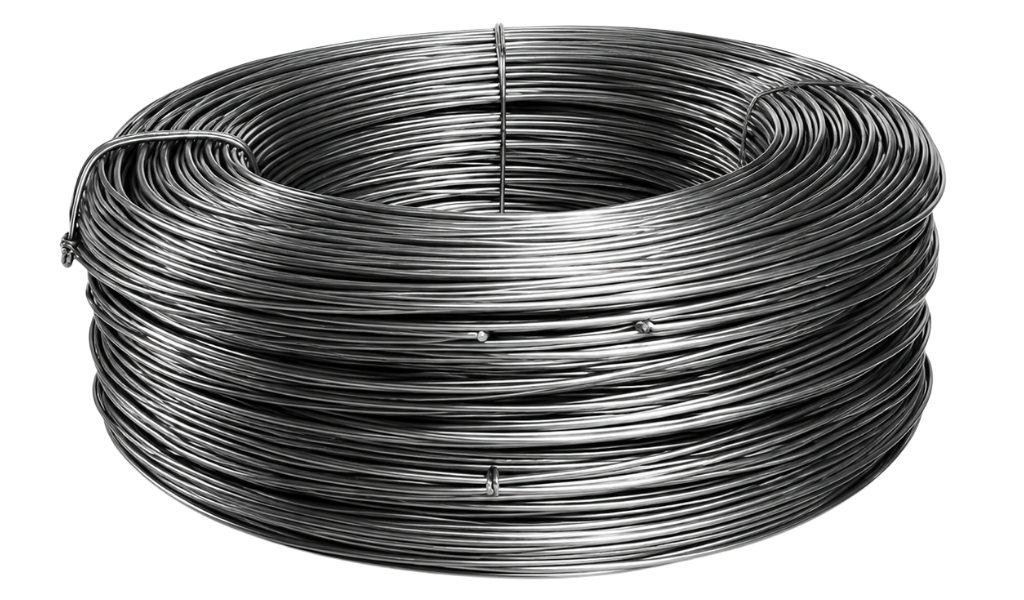

ARMOURING WIRE
Strong and durable wire used for armouring power cables and heavy duty applications.

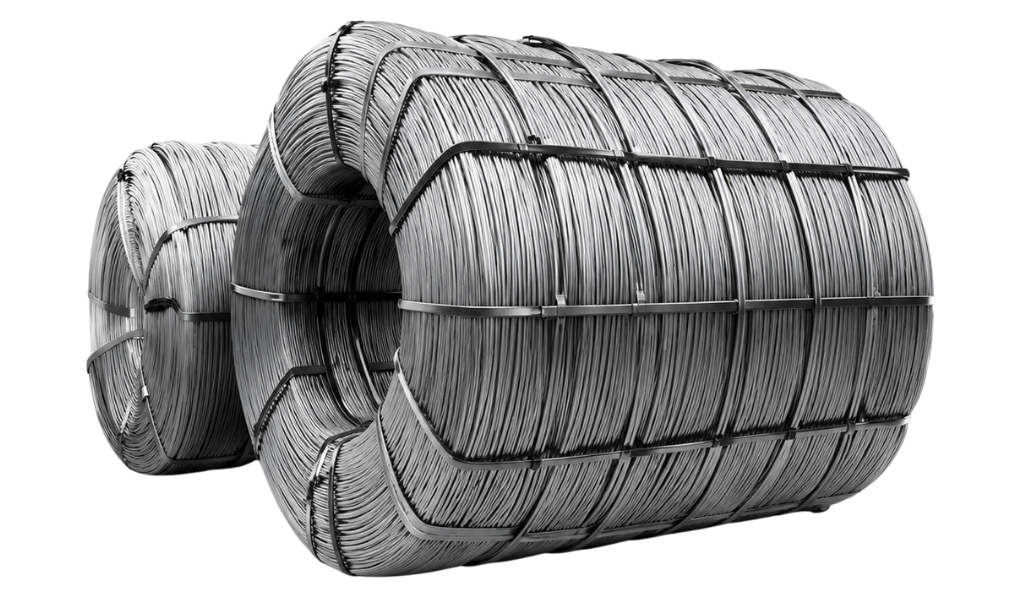

HB WIRE
High strength wire with enhanced ductility for bar bending and general construction use.
AVAILABLE SIZES
We manufacture a wide range of sizes to meet your exact requirements.
1.40
MM
1.60
MM
2.00
MM
2.25
MM
2.50
MM
3.00
MM
4.00
MM
And more sizes
Round and Flat Cable Armour
Round Cable Technical specifications
| Size | 0.90 mm – 4.00 mm |
|---|---|
| Tensile Elongation | 300 – 500 N/mm2 Min. 10% |
| Standards | BS 1442 (1969) ASTM A 4 11 , BS EN 10257-1 (1998), IS 3975 (1999) |
Flat Cable Technical specifications
| Size | 4.00 mm x 0.80 mm – 6.10 mm x 1.40 mm |
|---|---|
| Tensile Elongation | 300 – 500 N/mm2 Min. 10% |
| Standards | IS 3975 |
| Coil Weight | Round Wire – 60 kg – 1 MT Flat wire – 60 – 150 kg |
|---|---|
| Packing | Tightly wound coils wrapped in HDPE/Hessian Pattern layered coils can also be provided Min. 10% |

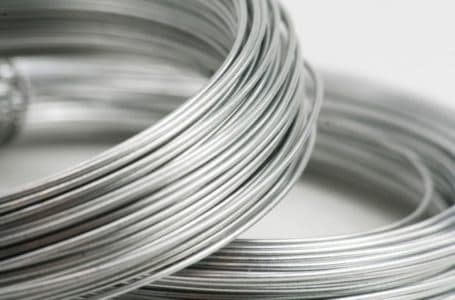

Hot Dipped Galvanized Wire
Hot Dipped Galvanized Wire Manufacturer in India
| Diameter | 0.90 mm to 6.00 mm |
|---|---|
| Zinc Coating | 30 to 366 GSM |
| Tensile Strength | 300 to 900 N/mm2 |
|---|---|
| Standards | IS 280(1978), BS 443 (1982), BS 5467 (1997), BS 6622 (2007), BS 7846, ASTM A641/A641m (1998) Class A, IS G3547 (1993), AS 1650 (1989), AS 2423 |

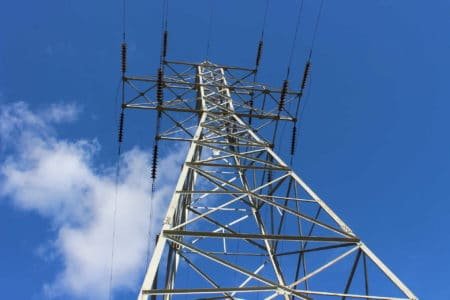

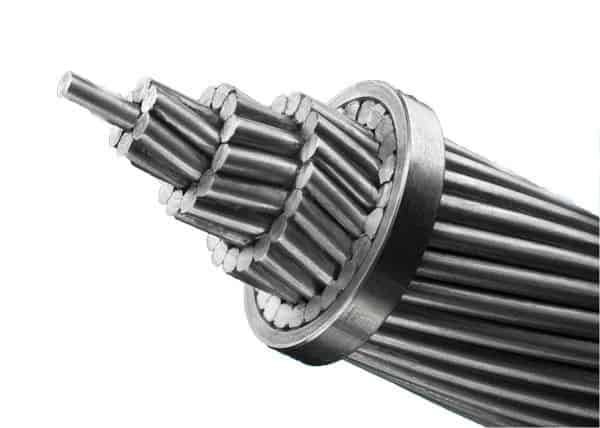

Galvanized Steel Core Wire for ACSR Conductor
Round Cable Technical specifications
| Size | 1.40 mm – 4.00 mm |
|---|---|
| Tensile Elongation | 300 – 500 N/mm2 Min. 10% |
| Standards | BS 1442 (1969) ASTM A 4 11 , BS EN 10257-1 (1998), IS 3975 (1999),IS 398 Part II, IS 398 Part V |
Flat Cable Technical specifications
| Size | 4.00 mm x 0.80 mm – 6.10 mm x 1.40 mm |
|---|---|
| Tensile Elongation | 300 – 500 N/mm2 Min. 10% |
| Standards | IS 3975 |
| Coil Weight | Round Wire – 60 kg – 1 MT Flat wire – 60 – 150 kg |
|---|---|
| Packing | Tightly wound coils wrapped in HDPE/Hessian Pattern layered coils can also be provided Min. 10% |
